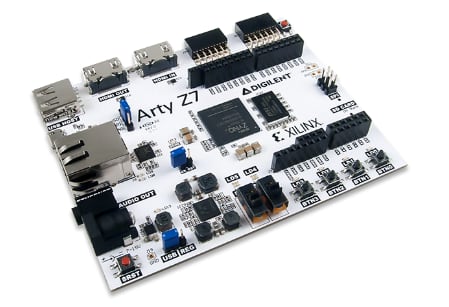

Arty Z7-20 Zynq-7000開発ボード 型番：410-346-20

SOLD OUT

＜税抜価格 29,750円＞　Zynq7000が搭載された開発プラットフォーム”Arty Z7”がいよいよ販売開始になります。当面、供給されるのは　XC7Z020-1CLG400C　が搭載された”Arty Z7-20 ”となります。

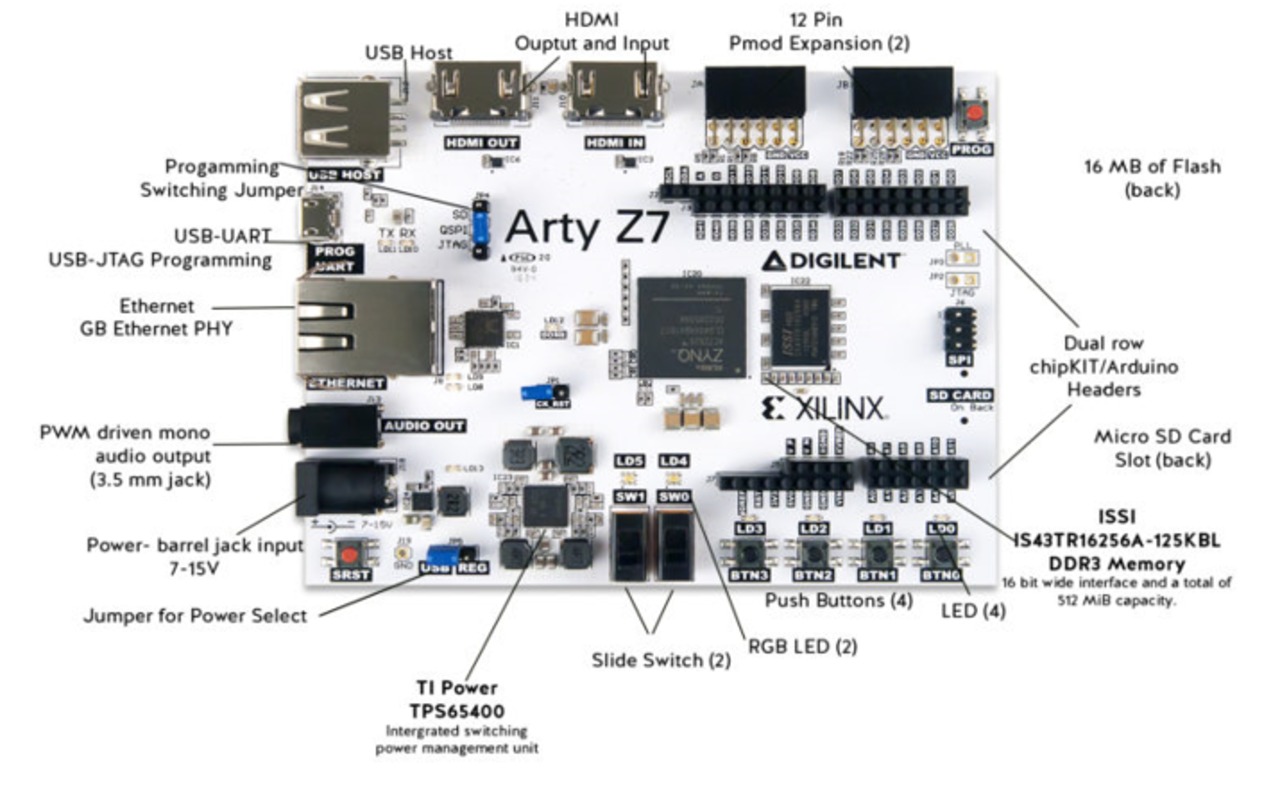

Features
　・ZYNQ Processor
　・650MHz dual-core Cortex-A9 processor
　・DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 　　Slave ports
　・High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
　・Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
　・Programmable from JTAG, Quad-SPI flash, and microSD card
　・Programmable logic equivalent to Artix-7 FPGA
Memory
　・512MB DDR3 with 16-bit bus @ 1050Mbps
　・16MB Quad-SPI Flash with factory programmed 48-bit globally unique
　　EUI-48/64™ compatible identifier
　・microSD slot
Power
　・Powered from USB or any 7V-15V external power source
USB and Ethernet
　・Gigabit Ethernet PHY
　・USB-JTAG Programming circuitry
　・USB-UART bridge
　・USB OTG PHY (supports host only)
Audio and Video
　・HDMI sink port (input)
　・HDMI source port (output)
　・PWM driven mono audio output with 3.5mm jack
Switches, Push-buttons, and LEDs
　・4 push-buttons
　・2 slide switches
　・4 LEDs
　・2 RGB LEDs
Expansion Connectors
　・Two standard Pmod ports
　　　16 Total FPGA I/O
　・Arduino/chipKIT Shield connector
　　　Up to 49 Total FPGA I/O (see table below)
　　　6 Single-ended 0-3.3V Analog inputs to XADC
　　　4 Differential 0-1.0V Analog inputs to XADC

製品仕様はDigilent社のサイトで確認できます。
http://store.digilentinc.com/arty-z7-apsoc-zynq-7000-development-board-for-makers-and-hobbyists/
